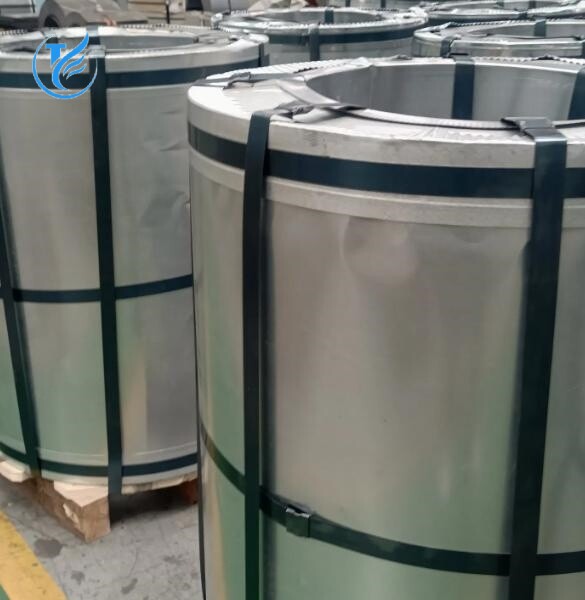

AZ150 Galvalume Steel Coil
Due to zinc's inherent properties, this product exhibits outstanding corrosion resistance, paintability, and workability. The manufacturing processes and specifications for hot-dip galvanised steel sheets and galvanised steel coils are generally consistent. Hot-dip galvanising is a process that prevents rusting by forming a protective zinc layer on the surface of steel or iron plates. * Possesses outstanding corrosion resistance, paintability, and workability owing to zinc's self-sacrificing properties. * Allows selection and production of required zinc coating weights, particularly enabling the formation of thick zinc layers (up to 275 grams per square metre). * Classified into two types based on whether skin-pass rolling is performed: non-grained and ultra-smooth.
Classification
Steel Coil

- Product Description -


on :

ProductAZ150 Galvalume Steel Coil
MaterialSGCC,SGCD,SGHC,DC51D,DX52D, DX53D,DX54D,S250GD-S550GD
Width30-1500 mm
Thickness0.125-2.0 mm
AZ CoatingAZ30-AZ275(g/m²)
SpangleRegular Spangle

Surface
Treatment
Chromated/Skin Pass/Oiled/
Slight Oiled/Un-Oiled/Dry/AFP/ Non-AFP
CoilWeight3-10 tons per coil or as required
GradeYield Strength/MpaTensile Strength/MpaElongation/%
DX51D+AZ≤360≤440≥20
Dx52D+AZ≤260330-360≥28
DX53D+AZ≤200270-320≥38
DX54D+AZ≤180270-310≥40
S250GD+AZ≥250≥330≥19
S350GD+AZ≥350≥420≥16
S450GD+AZ≥450≥510≥14
S550GD+AZ≥550≥560/
LG550GD+AZ≥550≥560≥5

- Product Display -

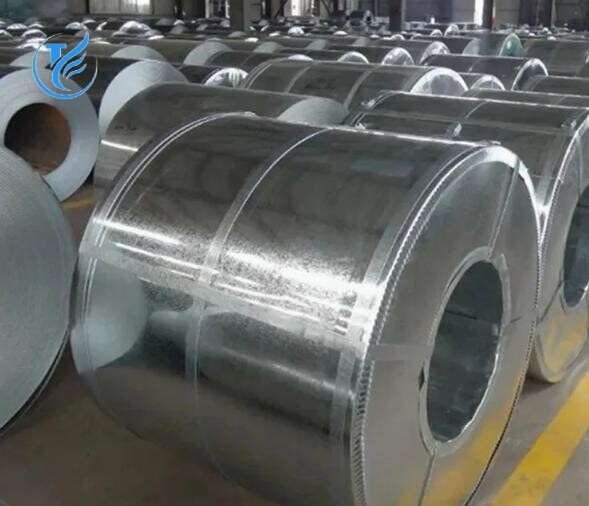

28579

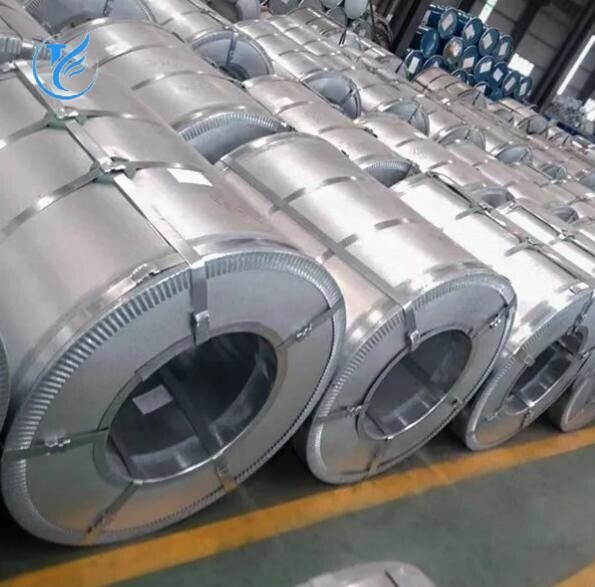

27225

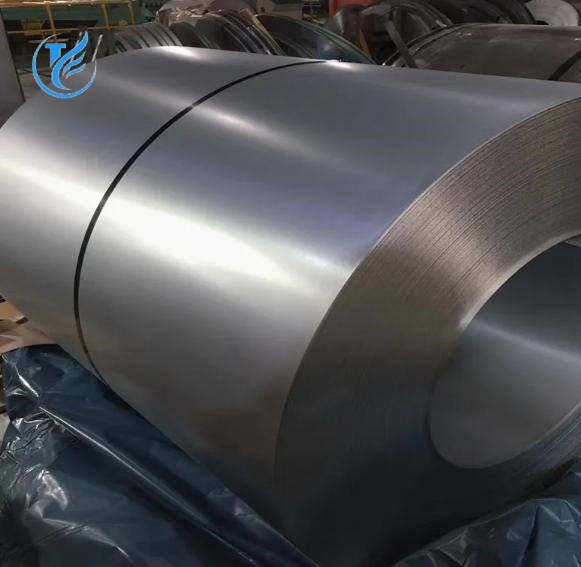

AZ150 Galvalume Steel Coil 3
