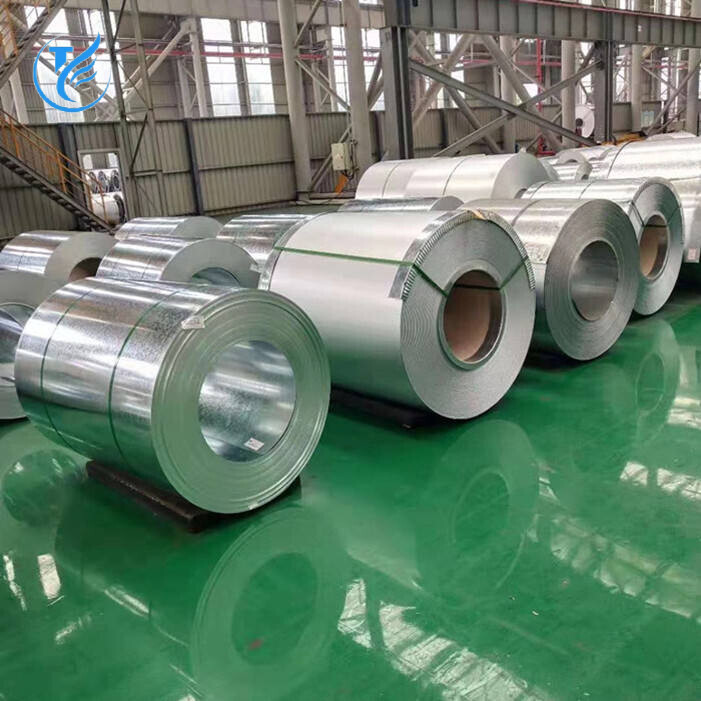

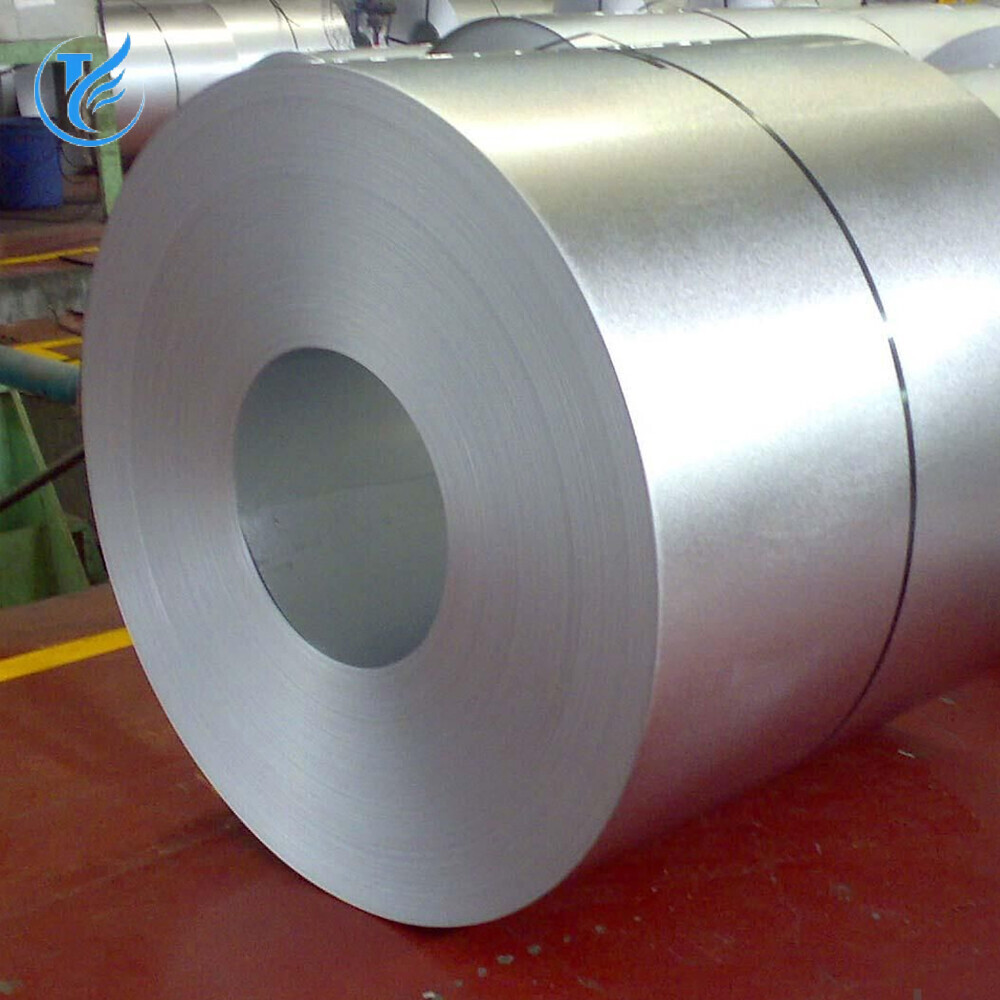

AZ50 Galvalume Steel Coil
As the surface coating of AZ50 galvalume steel coil is an alloy composed of aluminum, zinc and other trace elements, it has outstanding corrosion resistance and gradually replaces galvanized coil. The mixed structure of hot dip aluminum zinc silicon coating has its unique advantages in corrosion resistance. AZ50 aluminized zinc is a high quality corrosion resistant steel. It is made of a combination of aluminum and zinc, with an aluminum content of at least 50%. AZ50 aluminized zinc is not only suitable for the exterior of your house, but also for structural purposes and industrial applications. This alloy has many advantages, including excellent strength, impact resistance and excellent weldability.
Classification
Steel Coil

- Product Description -


Product Name

AZ50 Galvalume Steel Coil

Thickness

0.12mm-6.00mm

Width

600mm-1500mm

Length

1m-12m, Support Customization

Standard

AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.

Thickness of Aluminum Zinc Coating

30-185g/m²

Content of Al-Zn Coating

Al: 55%, Zn: 43.5%, Si: 1.5%


Chemical Composition

Al

Zn

Si

Fe

Cu

Cd

Pb

Sn

Ni

Close Cr

55-58

41-43

1.5-2

0.25

0.03

0.05

0.01

0.05

0.05

0.05


Mechanical Properties

Grade

Yield Strength MPa≥

Tensile Strength MPa≥

Elongation A%≥

DX51D Z/ZM/AZ/AM

240-380

270-500

22

DX52D Z/ZM/AZ/AM

140-300

270-420

26

DX53D Z/ZM/AZ/AM

140-260

270-380

30

DX54D Z/ZM/AZ/AM

120-220

260-350

36

S220GD Z/ZM/AM

220

300

20

S250GD Z/ZM/AZ/AM

250

330

19

S280GD Z/ZM/AM

280

360

18

S300GD A/AM

300

380

18

S320GD Z/ZM/AM

320

390

17

S350GD Z/ZM/AZ/AM

350

420

16

S450GD A/AM

450

480

15

S550GD Z/ZM/AZ/AM

550

550

-
